Fiberglass Mesh Reinforced Polyester Mat Fiberglass Mesh Reinforced Polyester Mat is Polyester Mat reinforced by Fiberglass Scrim. This mat is mainly used as excellent substrate material for APP or SBS modified bitumen membrane, oil pipe wrapping material, Geotextile material, reinforcement of...

Send Inquiry

Features

We focus on the challenges and pressures that customers care about, and solve technical problems in the application of Fiberglass Roofing Mat, PE Reinforced Polyester Mat, Fiberglass Alkali-resistant Mesh for customers. We welcome all inquiries and comments. We use internet innovative thinking to provide thoughtful, safe and personalized sharing services.

Products Description



reinforced polyester mat

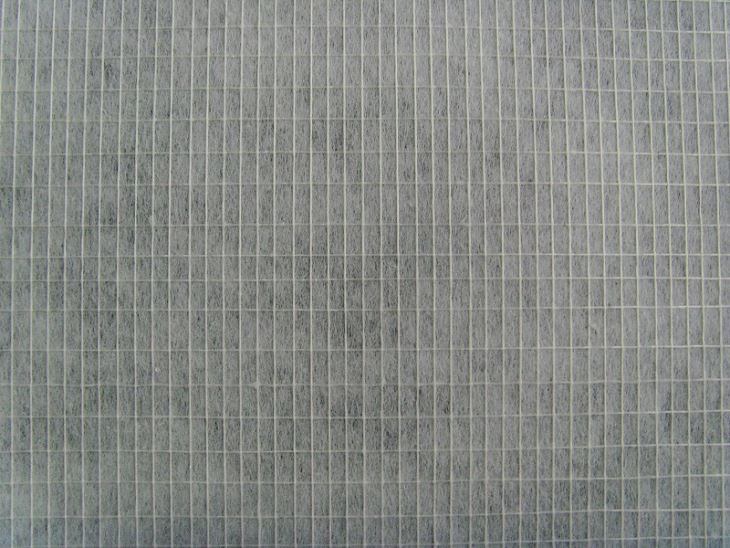

Fiberglass Mesh Reinforced Polyester Mat is a high-performance composite material that combines the flexibility of polyester nonwoven with the dimensional stability and high-temperature resistance of fiberglass mesh.



This reinforcement material ensures excellent runnability on high-speed bitumen production lines while significantly improving the tensile strength, tear resistance, and long-term durability of waterproofing membranes and paving systems.



The integration of fiberglass eliminates the thermal memory effect, meaning that once applied to roofs or pavement systems, the bituminous membrane remains dimensionally stable and resists shrinkage or deformation caused by temperature changes.



Key Features



  1. High Heat Resistance – Performs well under elevated temperatures.
  2. Anti-Corrosion – Resistant to chemical and environmental degradation.
  3. Enhanced Mechanical Strength – Increases tensile and tear strength of bitumen membranes.
  4. Extended Service Life – Prolongs the life of waterproofing membranes and paved surfaces.
  5. Cost-Effective – Low-cost solution with high performance.
  6. Application-Friendly – Easy to handle, cut, and install.



Applications



  • Pipeline Wrapping & Protection
  • Substrate material for bituminous waterproofing membranes
  • Reinforcement material for sports flooring systems
  • Paving mat to enhance waterproofing, anti-crack, and structural stability for highways, airport runways, and other large-scale pavement projects
  • Geotextile reinforcement for infrastructure and civil engineering projects



Technical Data



Parameter Unit PF110-45P
Area Weight g/m² 100
Polyester Mat Weight g/m² 45
Tensile Strength (MD) N/5cm 700
Tensile Strength (CD) N/5cm 700
Mesh Opening ends/cm 3 × 1.6
Roll Length m/roll 1100
Roll Diameter mm 760
Paper Core Diameter mm 76 / 152
Roll Width mm 1002
Elongation at Break % 4
Loading (Rolls / 40'HC without pallet) – 114
Loading Capacity m² / 40'HC 125,400



Packaging & Loading



  • Roll Packaging: PE plastic film
  • Pallet Packaging: Stacking ≤ 2 layers; pallets are fumigation-free with certificate available



Delivery：

Products are loaded into containers at the factory and shipped via major international carriers such as MSK, MSC, CMA, COSCO, YANG MING, APL, etc., to customers' ports worldwide.

2
3



Storage Conditions



  • Store in a dry, ventilated, and rainproof location
  • Recommended temperature: 5°C – 35°C
  • Recommended humidity: 35% – 65%
  • Keep in original packaging to prevent moisture damage



Customization Options



Standard specifications are listed above.
Customized solutions available upon request:

  • Area weight
  • Tensile strength
  • Roll width and roll length
  • Special mesh patterns or reinforcement requirements

We provide tailored solutions to meet the specific technical and market requirements of customers worldwide.

7E7A3252
7E7A3260



Our Services



  • Full tracking of every shipment until the product is safely used
  • Technical support for product application
  • On-site guidance available if required
  • Assistance with installation, troubleshooting, and customized solutions
