Products

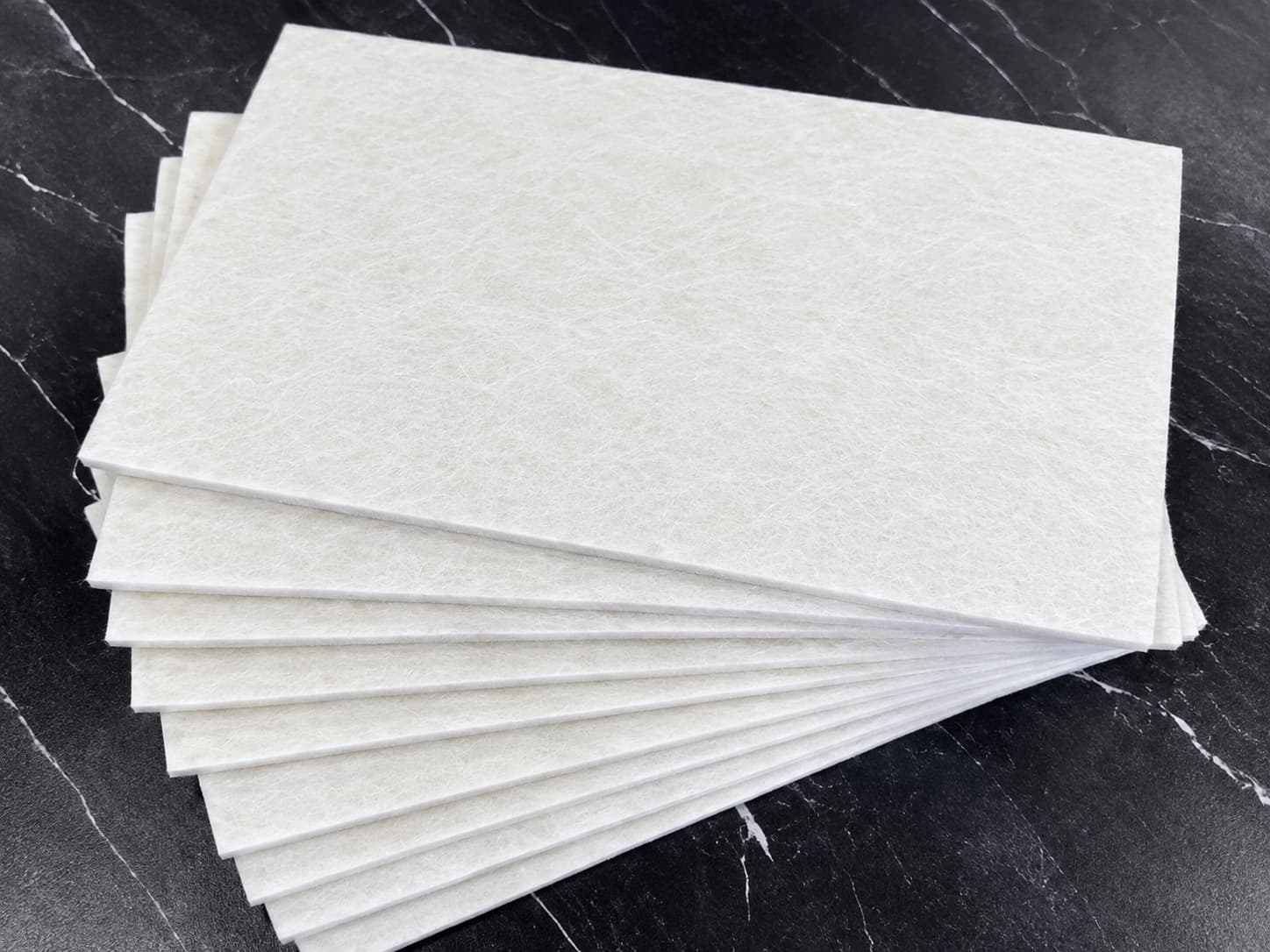

Fiberglass Acoustic Board

Nanjing EFG Fiberglass Acoustic Board is manufactured from chopped fiberglass using a wet-laid process. Its porous structure provides sound absorption, thermal insulation and fire-resistant performance, while the lightweight board is easy to cut and process. Standard and customized specifications are available for different acoustic and building applications.

Send Inquiry

Features

Product Overview

Fiberglass Acoustic Board is manufactured from chopped fiberglass using a wet-laid process. The controlled fiber structure forms a porous board that combines sound absorption, thermal insulation and fire-resistant performance.

Standard products are available in approximately 8–10 mm thickness. The board provides good stiffness while remaining lightweight, bendable and easy to cut, making it suitable for further processing and installation.

Its combination of acoustic, thermal and physical properties makes fiberglass acoustic board suitable for interior building materials and other applications where sound control and insulation performance are required.

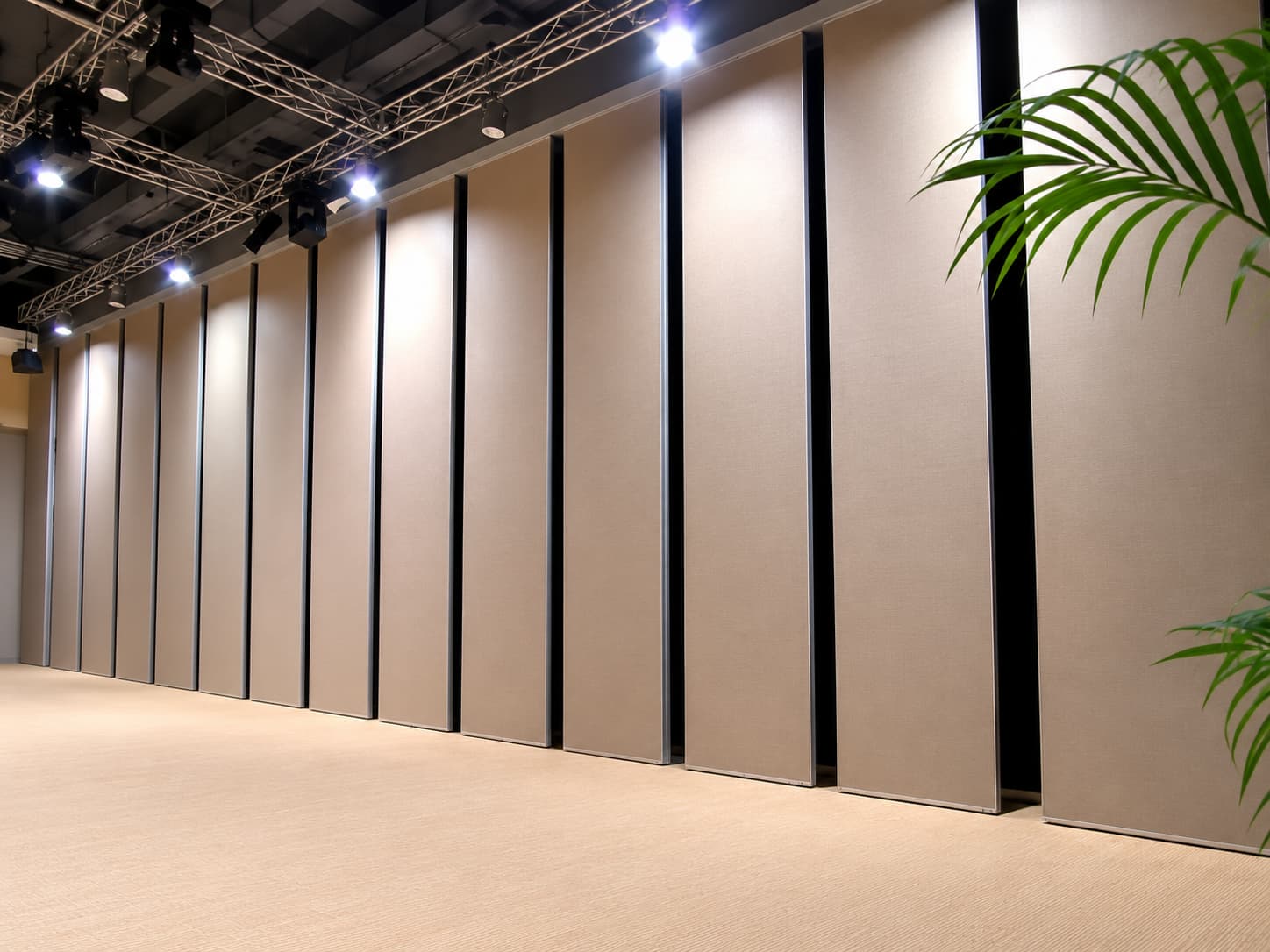

Fiberglass Acoustic Board Wall Application

Fiberglass Acoustic Board in Office Interior

Key Features

Sound Absorption

The porous fiberglass structure helps absorb sound across a wide frequency range, making the material suitable for acoustic treatment and noise-control applications.

Thermal Insulation

Fiberglass construction also provides thermal insulation performance, helping reduce heat transfer in building and interior systems.

Fire-Resistant Performance

The material has been evaluated according to the listed GB/T fire performance test methods, covering heat release, smoke generation, burning droplets and other indicators.

Lightweight and Easy to Process

Fiberglass Acoustic Board combines good stiffness with relatively low weight. It can be cut and further processed according to different installation and product requirements.

Custom Specifications

Unit weight, thickness, tensile strength, width, length and other specifications can be adjusted according to customer requirements.

Applications

Fiberglass Acoustic Board can be used in a wide range of acoustic and insulation environments, including:

Conference rooms and private offices
Training rooms and classrooms
Museums and libraries
Swimming pools and health clubs
Gymnasiums and public areas
Corridors and open-plan spaces
Recording studios
Computer and data processing rooms
Mechanical rooms
Selected industrial acoustic applications

Fiberglass Acoustic Board for Home Theater Acoustic Treatment

Technical Data

Product Code		FB8.1			FB8.8
	Unit	Target	Min	Max	Target	Min	Max
Unit Weight	lbs/1300 ft2	215	195	276	232	210	295
Unit Weight	g/m2	808	733	1037	872	789	1109
Thickness	inches	0.320	0.300	0.340	0.345	0.325	0.365
Thickness	mm	8.1	7.6	8.6	8.8	8.3	9.3
Density	lbs/ft3	6.2	6.0	7.5	6.2	6.0	7.4
Density	g/cc	0.099	0.096	0.120	0.099	0.095	0.119
Loss on Ignition	%	12.5	11.0	15.0	12.5	11.0	15.0
MD Tensile	lbs/0.5"	65	55	*	70	60	*
CD Tensile	lbs/0.5"	60	50	*	65	55	*
MD Stiffness	g * 50mm	425	395	*	460	430	*
CD Stiffness	g * 50mm	410	380	*	445	435	*
Note: The product is manufactured according to the specified thickness requirements. Special sizes can also be supplied according to customer requirements. The technical data shown above is for reference only.

Moisture Regain & Formaldehyde Content test

Item	Standard	Test Result	Conclusion
Moisture Regain	≤5.0	2.9	Qualified
Formaldehyde Content	--	Not detected	--

Flame retardant test

Item	Test Method	Standard Data		Test Result	Conclusion
Fire growth rate index (FIGRA)W/s	GB/T 20284-2006	A2	≤120	0	QUALIFIED
Total heat release in 600 seconds (THR 600S), MJ	GB/T 20284-2006		≤7.5	0.6
Horizontal flame spread length (LFS),m	GB/T 20284-2006		＜sample	Meet requirement
The calorific value of combustion (PCS), MJ/kg	GB/T 14402-2007		≤3.0	1.8
Smoke generation rate index (SMOGRA), ㎡/s²	GB/T 20284-2006	S1	≤30	0	QUALIFIED
Total smoke production in 600 seconds (TSP 600s),㎡	GB/T 20284-2006	S1	≤50	16	QUALIFIED
Burning drips	GB/T 20284-2006	d0	No drips in the 600s	Meet requirement	QUALIFIED
Toxicity of smoke	GB/T 20285-2006	T0	ZA1	ZA1	QUALIFIED

Sound absorption test (thickness 8.76mm)

Frequency	Hz	100	125	160	200	250	315	400	500	630
Sound absorption coefficient	αs	0.04	0.15	0.23	0.34	40.2	0.57	0.64	0.91	0.95
Frequency	Hz	800	1000	1250	1600	2000	2500	3150	4000	5000
Sound absorption coefficient	αs	0.95	0.87	0.80	0.72	0.72	0.83	0.91	01.02	0.95

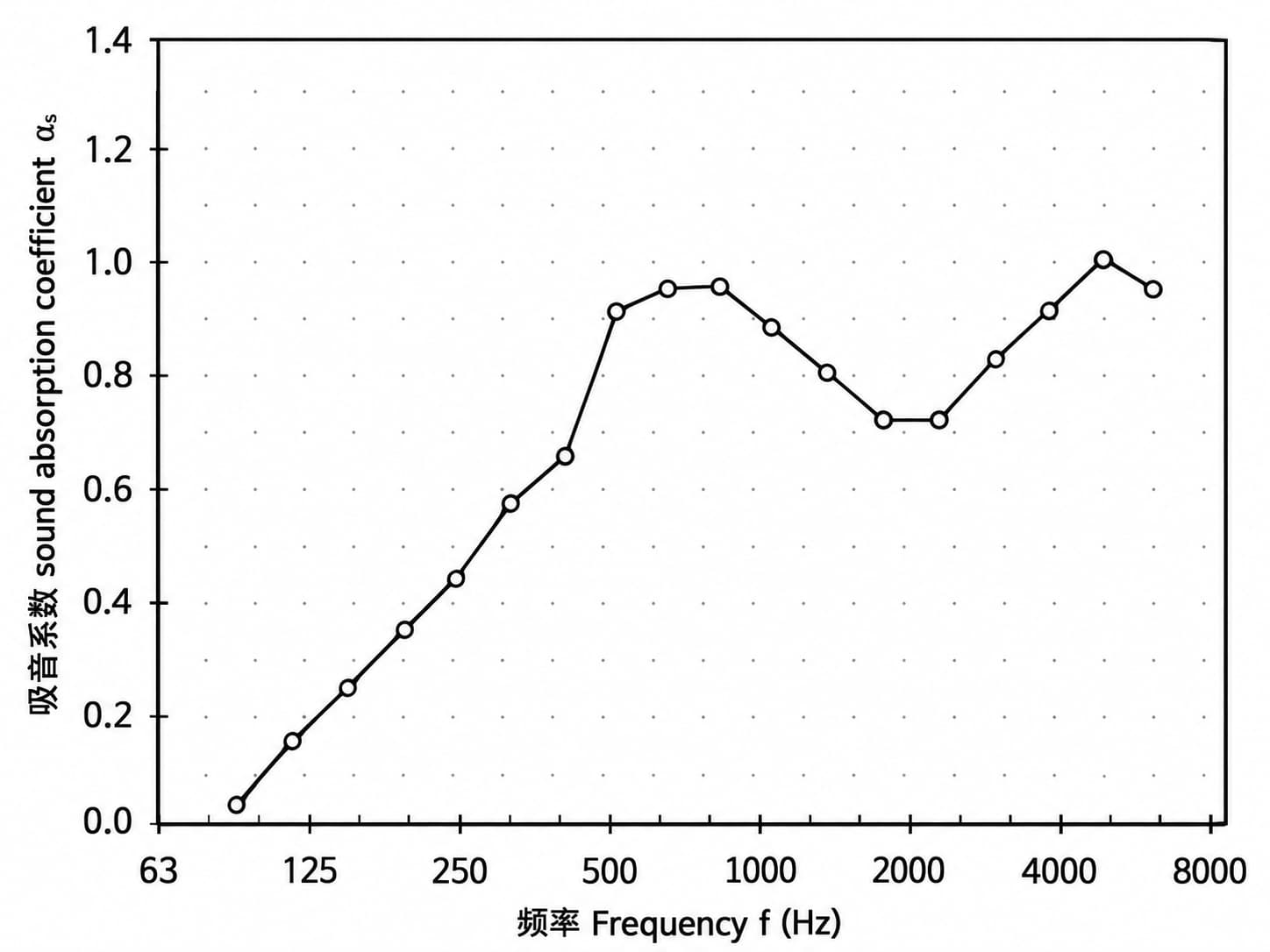

Fiberglass Acoustic Board Sound Absorption Coefficient Test Curve

Thermal Conductivity test (6mm)

Item

Test Method

Test result

Thermal Conductivity

W(m·K)

Average temperature 25℃

GB/T 10295-2008

0.032

Average temperature 70℃

0.039

Custom Fiberglass Acoustic Board

In addition to standard products, Nanjing EFG can provide customized fiberglass acoustic boards according to customer requirements.

Customization can include:

Unit weight
Thickness
Tensile strength
Width
Length
Packaging requirements

Customers can provide the required dimensions, technical specifications and intended application. Our team can assist with specification confirmation before production.

Packing & Loading

Fiberglass Acoustic Board is protected for storage and export transportation.

Products can be packed with PE plastic film and pallets according to product dimensions and shipment requirements.

Pallet and container loading arrangements can also be adjusted according to order quantity, product size and destination.

Storage

Fiberglass Acoustic Board should be stored in a dry, ventilated and rainproof environment.

Recommended storage conditions are:

Temperature: 5°C–35°C
Relative Humidity: 35%–65%

Products should remain properly packed when not in use to reduce the risk of moisture absorption and contamination.

Quality & Technical Support

Nanjing EFG provides technical support for product specification confirmation and customized requirements.

Customers can provide information such as required thickness, dimensions, quantity, performance requirements and intended application. Our team can assist in selecting or developing a suitable fiberglass acoustic board specification.

FAQ

Q: What thicknesses are available for fiberglass acoustic board?

A: Standard products are available at approximately 8–10 mm thickness. Other specifications can be discussed according to project requirements.

Q: Can fiberglass acoustic board specifications be customized?

A: Yes. Unit weight, thickness, tensile strength, width, length and other specifications can be adjusted according to customer requirements.

Q: What information should I provide for a quotation?

A: Please provide the required thickness, dimensions, quantity, technical requirements and intended application. This information helps us recommend a suitable specification.

Q: Can you provide technical data for product evaluation?

A: Yes. Existing technical data and test information can be provided for reference. Specific requirements can also be discussed before ordering.
