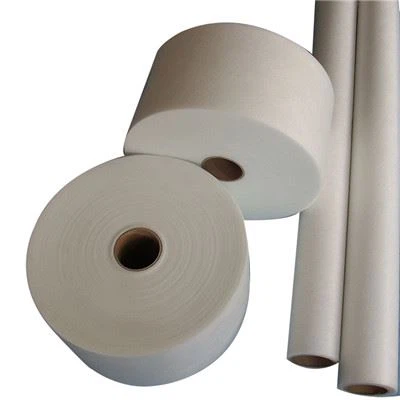

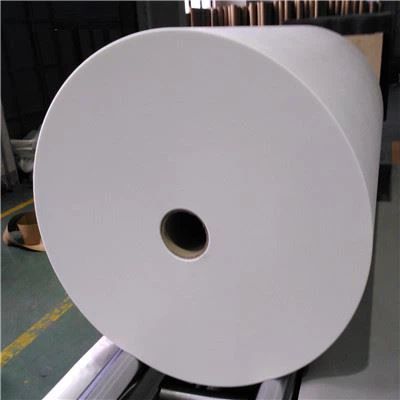

Fiberglass Surface Tissue

Fiberglass Surface Tissue

Fiberglass surface tissue is mainly used for inner and outer surface treatment of FRP products, to make the surface smooth and even. It is suitable for saturated polyester resin, epoxy resin, and phenolic resin. According to the application process, there are three types of surface tissue.

Product Details

Product description

Fiberglass surface tissue is mainly used for inner and outer surface treatment of FRP products, to make the surface smooth and even. It is suitable for saturated polyester resin, epoxy resin, and phenolic resin. According to the application process, there are three types of surface tissue :


1) Hand lay-up type FRP surface tissue

Hand lay-up type FRP surface tissue is mainly applied in the production of hand lay-up FRP products. It has the advantages of good pattern fitness and quick resin permeating. It is also characterized as covering up the texture of layers, making the surface smooth, and improving the FRP product’s service life.



2) Wrap type FRP surface tissue

Wrap-type FRP surface tissue is mainly applied in wrapping FRP pipes and vessels. It has absorbed a great deal of resin and the defendable layer formed on the FRP product surface. It is capable of significantly improving the performance of the surface layer to strengthen a longer lifetime and resistance against corrosion, leakage, and compression.


3) Pull trussing type surface tissue

Pull trussing type surface tissue could improve the strength of the profiled material surface layer. It can ameliorate the capability and avoid cracking of the product.

fiberglass surface tissue 1

Characteristics

Fiber Uniformly Dispersed

Smooth and Soft Surface

Fast Wet-out

Excellent Molding Property


Technical data

Product code

                    Unit Weight

LOI

MD Tensile Strength

Moisture Content

Penetrating time


g/m2

%

N/5CM

%

S

F-BM-30H

30

≤10

≥25

≤0.5

≤10(Two layers)

F-BM-50H

50

≤10

≥40

≤0.5

≤15(Two layers)

F-BM-30W

30

≤10

≥30

≤0.5

≤10(Two layers)

F-BM-50W

50

≤10

≥50

≤0.5

≤15(Two layers)

F-BM-100W

100

≤10

≥180

≤0.5

≤15(One layer)

F-BM-60P

60

≤20

≥100

≤0.5

——

F-BM-90P

90

≤15

≥120

≤0.5

——

F-BM-100P

100

≤15

≥180

≤0.5

——

Testing Basis

ISO3374

ISO 1887

ISO3342

ISO 3344

EN 14118

Paper core diameter: 76/152mm

Remark: 1. Other specifications can be customized according to the customer's demand.

               2. The technical data above is for reference only.

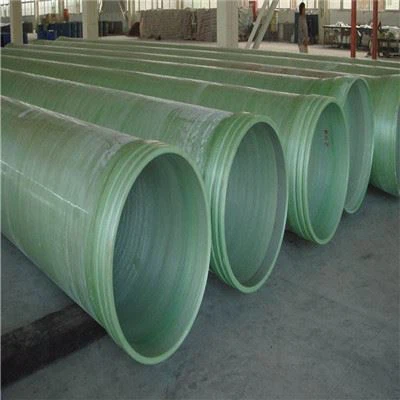

Application

1  2

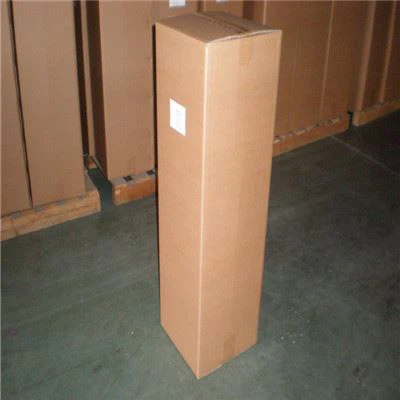

 Packing & Loading

1. Roll packaging: PE plastic film.

2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.

    The pallet is free of fumigation, fumigation certificate is available.

1611914319(1)fiberglass mat

Delivery

The product will be loaded into a container in the factory. Then be delivered to the seaport, and finally shipped to the Customers' port by MSK, MSC, CMA, COSCO, YANG MING, APL,  etc.


Storage

This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in a safe package when not used to avoid dampness.


Customization

The product in the above table is the standard type Nanjing EFG CO., LTD is delivering to customers. If the customer wants it in specific unit weight, tensile strength, roll width, and roll length, Nanjing EFG CO., LTD can produce fiberglass mat as per the customer’s requirement, offer tailored service to customers from different countries.


Payment

 LC, T/T, CAD, PAYPAL, WESTERN UNION, ETC.


Our Services

Nanjing EFG CO., LTD tracks the cargo of every shipment till the customer uses the fiberglass mat, and offers any help for the customer’s demand at any time.

If the customer meets any problem with technic, Nanjing EFG CO., LTD will supply relative knowledge to help the customer find the best solution, and can send a technician to the customer's factory for guidance if necessary.
