Product Details

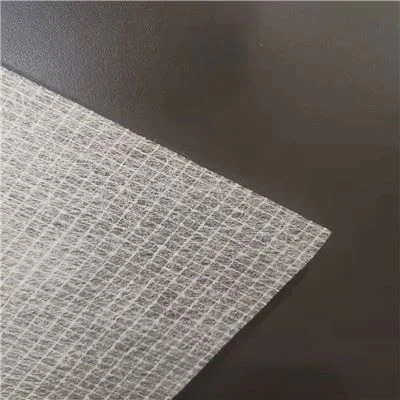

Reinforced Fiberglass Mat (Fiberglass mat + scrim)

Reinforced Fiberglass Mat is a type of Fiberglass mat reinforced by fiberglass mesh, which gives very strong tensile strength in both longitudinal direction and lateral direction. The tensile strength is adjustable by adjusting the mesh size of the scrim and texture of the yarns, so the reinforced fiberglass mat can be produced according to the requirement on tensile strength from our customers.

Characteristics:

High tensile strength

Corrosion resistance

High tear resistance

Low elongation

Technical Data:

Item	Specification
Item No.	FM60/35F	FM95/35F	FM110/50F	FM120/60F	FM130/60F	FM135/50F	FMF140/800
type	Fiberglass mat + fiberglass scrim	Fiberglass mat + fiberglass scrim	Fiberglass mat + fiberglass scrim	Fiberglass mat + fiberglass scrim	Fiberglass mat + fiberglass scrim	Fiberglass mat + fiberglass scrim	Fiberglass mat + fiberglass scrim+fiberglass mat
Area Weight (g/M2)	60±5	95±5	110±10	120±10	130±10	135±10	140±10
Mat Weight (g/M2)	35	35	50	60	60	50	40
Width (mm)	1000	1000	1000	1000	1000	1000	1000
Mesh Open (ends/cm)	2x1	3x1.6	3x1.6	3.0x1.6	2x1.6	3.0x1.6	3.0x1.6
MD & CD yarns (Tex)	68x68	68x136	68x136	68x136	136x136	136x136	68x136
Roll Diameter （mm）	1180	1180	1180	1180	1180	1180	1180
Core Diameter （mm）	76, or 152	76, or 152	76, or 152	152	152	152	152
Moisture （%）	0.8	0.8	0.8	0.8	0.8	0.8	0.8
Binder Content (%)	25	25	25	25	25	25	25
Tensile Strength MD （N/5cm）	≥450	≥700	≥700	700	900	1200	800
Tensile Strength CD （N/5cm）	≥250	≥700	≥700	700	700	700	800

Customization:

Above technical dates are standard for our company. Of course we can produce as per your requirement . First , tell us your requirement or where you will use the products, then we will make samples and send you by courier. Please comment on /confirm the samples we send. We will try out best to satisfy you need.

Application:

1. Excellent substrate material for APP and SBS modified bitumen membrane.

2. Ideal base material for pipe wrapping.

3. Paving mat for Express way and airport runway.

4. Reinforcement for high strength sports floor.

Packing:

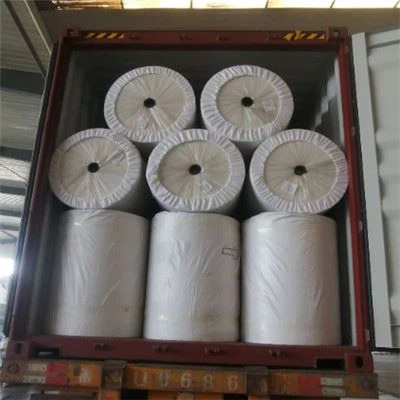

Every roll in plastic film, 114 rolls/40HQ without pallets.

Delivery:

Compound mat will be loaded into container in factory, then be delivered to the sea port, finally be shipped to customers port by ships/vessels. Commonly we assure you we can make delivery two weeks on getting your confirmed order.

Our services:

We are factory majored in fiberglass/poly fiber since 2006, having much experiences in this line. You can trust us for our good service, profession, prompt delivery and best price. We can offer any help any time. If you have any question /need, please contact us.

Look at finished products and goods under production
