Cement Coated Fiberglass Mat

Cement Coated Fiberglass Mat

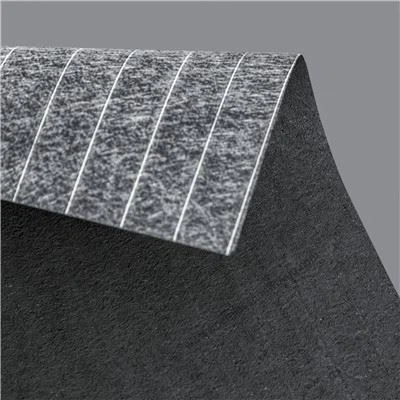

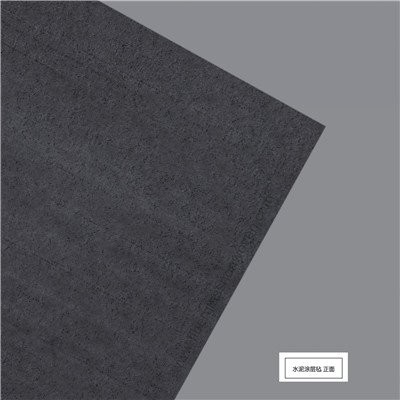

The coated fiberglass mat is a functional material to be covered on the surface of external wall insulation board such as mineral wool board and polyurethane board, which use fiberglass mat as a base material, being coated with the compound of stone powder, cement, binder, and other functional fillers.

Product Details

Product description

The coated fiberglass mat is a functional material to be covered on the surface of external wall insulation board such as mineral wool board and polyurethane board, which use fiberglass mat as a base material, being coated with the compound of stone powder, cement, binder, and other functional fillers. After covering with the coated fiberglass mat, the break strength of the insulation board is obviously improved, the coated fiberglass actually become a shielder of the insulation board, increasing the waterproofing future of the insulation board. Since the coated mat is covered with cement and stone powder, which makes the insulation board can be attached to the wall with cement directly, simplified the mounting process.

cement coated fiberglass matinsulation boardcoated fiberglass mat

Technical data

Product code

Unit Weight (g/m2)

Pull strength


MD/CD Tensile Strength (N/5cm)

Roll width


Roll length


Roll diameter
















Testing Basis

GB/T 9914.3-2011


Surface covering of mineral board

CCM-320 is an excellent material for the surface covering of mineral board. This coated fiberglass mat is not fully impregnated with the compound. Usually impregnate 4/5 of the fiberglass mat on thickness, leaving 1/5 of the fiberglass mat on thickness without coating. Then use the fiberglass layer of the coated mat to attach to the mineral board, the lamination will be excellent.

Surface covering of polyurethane board

CCM-400 is designed for the surface covering of polyurethane board. For this application, the fiberglass mat is fully impregnated with the compound. It has a thicker coating layer And minimized the porosity of the coating layer. This structure efficiently avoided the leakage of polyurethane foam during the polyurethane board production.


1. Disadvantages of traditional insulation board

Lower tensile strength of the mineral wool itself

Low interfacial strength with cement mortar

Quickly decreasing tensile strength after long-time working

Irritating to the human body

Higher water absorption: after absorbing water, the physical and mechanical properties of rock wool board fall greatly, much influenced by freezing and thawing damage.

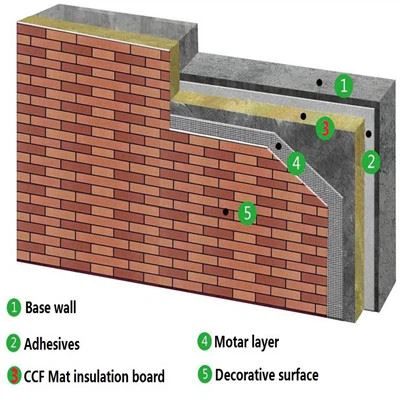

2. Advantage of CCF Mat laminated insulation board

A-Grade fireproofing

Perfect waterproof performance

Excellent mechanical property

Excellent adhesion between the CCF mat laminated insulation board and the wall

Regularized size, flatness, high strength of the board, good impact resistance

Enriched size choice, excellent mechanical property, and workability

No need for waterproof treatment, double-layer fiberglass, or steel wire mesh reinforcement.

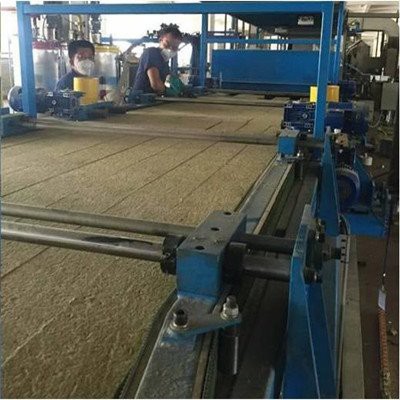

Continuous production line, high efficiency, good quality controllability

In the traditional plastering process, technology is mature, high efficiency

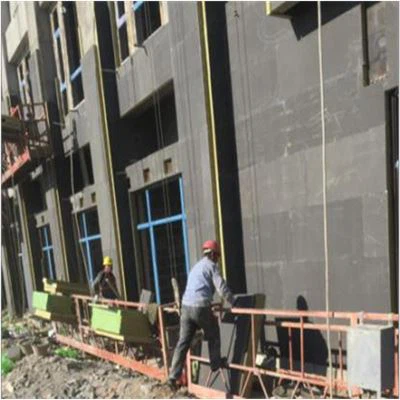

Safety application of the CCF Mat laminated insulation board

Operation cost-effective

Perfect features of temperature variation resistance, flexibility, and climatic aging resistance.

Health friendly - the most important point

34-2Wall with traditional insulation board1

Packing & Loading

1. Roll packaging: PE plastic film.

2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.

    The pallet is free of fumigation, fumigation certificate is available.


The product will be loaded into a container in the factory. Then be delivered to the seaport, and finally shipped to the Customers' port by MSK, MSC, CMA, COSCO, YANG MING, APL,  etc.

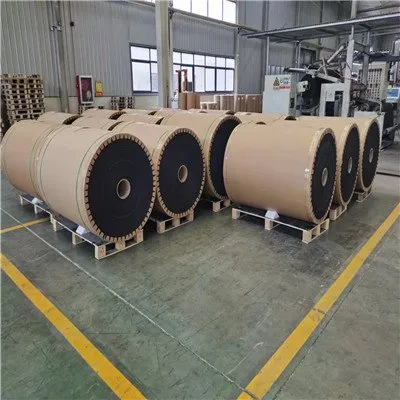

mat roll for mineral wool board DJI_0027[00_00_02][20211108-120408]_202202211546163



This product should be stored in a dry, ventilated, rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in a safe package when not used to avoid dampness.


The product in the above table is the standard type Nanjing EFG CO., LTD is delivering to customers. If the customer wants it in specific unit weight, tensile strength, roll width, and roll length, Nanjing EFG CO., LTD can produce fiberglass mat as per the customer’s requirement, and offer tailored service to customers from different countries.



Our Services

Nanjing EFG CO., LTD tracks the cargo of every shipment till the customer uses the fiberglass mat, and offers any help for the customer’s demand at any time.

If the customer meets any problem with technic, Nanjing EFG CO., LTD will supply relative knowledge to help the customer find the best solution, and can send a technician to the customer's factory for guidance if necessary.
