PVC Impregnated Fiberglass Mat

PVC Impregnated Fiberglass Mat

PVC floor is widely used because of its lightweight, beautiful design, not easy to wear and tear, and easy to operate. However, due to the addition of many filling materials, PVC floor has lower strength and greater brittleness.PVC material has the characteristic that it is easy to cause thermal expansion and contraction.

Product Details

Production description

PVC floor is widely used because of its lightweight, beautiful design, not easy to wear and tear, and easy to operate. However, due to the addition of many filling materials, PVC floor has lower strength and greater brittleness. PVC material has the characteristic that it is easy to cause thermal expansion and contraction, so PVC flooring in a public place such as airport, mall, hotel, hospital, etc., are easy to bubble and hard to get repaired.

According to this phenomenon, NJEFG developed the PVC impregnated fiberglass mat for PVC flooring. PVC impregnated fiberglass mat is used as stabilizing layer of PVC floor. This material uses a Fiberglass floor mat as the base material and is evenly impregnated with melted PVC.

Since this material is impregnated with PVC, which can make the fiberglass floor mat be fully laminated with PVC layer during the PVC floor production, and make the PVC floor be flat and be very well stabilized, also makes the floor more suitable for heating. Producing efficiency of PVC floor is increased at the same time.

The fiberglass mat can be 30g/m2, 40g/m2, and 50g/m2 or according to the customer's demand. And the minimum final weight of the PVC impregnated fiberglass mat can be around 120g/m2, the popular weight is 150g/m2 and 250g/m2, and the final weight can be done according to the customer's requirement.

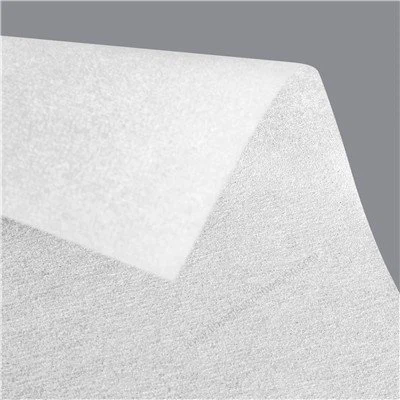

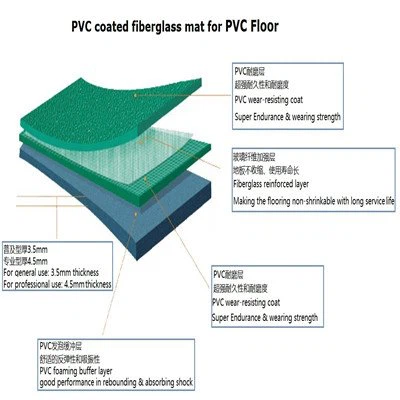

PVC coated fiberglassfiberglass mat PVC floorPVC floors


Features

Lower unit weight, high strength, uniform surface

Significantly reduces the expansion rate of the floor

Makes the floor more suitable for heating

Increase the production efficiency of the floor and the rate of the finished product

Free of formaldehyde, environment friendly


Technical data

Code

fiberglass floor mat

Total unit weight

Tensile strength MD

Tensile strength CD

Thickness

Moisture

Paper core diameter


g/m2

g/m2

N/5CM

N/5CM

mm

%

mm

PC-150

30

150(±20)

≥150

≥100

0.3(±0.05)

≤1

76

PC-250

40

150(±30)

≥170

≥110

0.35(±0.05)

≤1

76

Standard

GB/T 24218.1-2009

GB3820-1997

GB/T 24218.3-2009

GB/T11966-1989


Remark:

1. Roll width 1m, 1.11m (±2mm)

2. Roll length: 1300m

3. Roll diameter: 70cm (±2 0mm)


Application

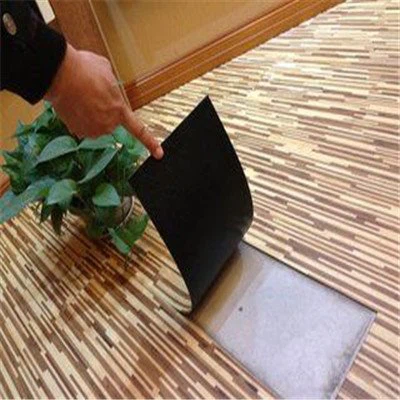

PVC floor decorationPVC floorPVC floor decoration


Customization

PVC impregnated fiberglass mat in the above table are the standard types Nanjing EFG CO., LTD is delivering to customers, if the customer wants a specific unit weight, tensile strength, roll width, and roll length, Nanjing EFG CO., LTD can produce as per the customer's requirement, offer tailored service to customers from different countries.


Packaging

1. Roll packaging: plastic film, corrugated carton

2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.


Storage

This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in the intact package when not used to avoid dampness.


Loading

Standard export loading

MarketsNanjing EFG CO., LTD. has delivered cargo to USA, EU, Middle East, North Africa, South Africa, and Asian customers with ensured quality and rich experience for export delivery. Nanjing EFG CO., LTD welcomes cooperation from all over the world.

DeliveryPVC impregnated fiberglass mat will be loaded into the container in the factory, then be delivered to the seaport, and finally be shipped to the Customer's port by MSK, MSC, CMA, COSCO, YANG MING, APL,  etc.


Payment

LC, T/T, CAD, PAYPAL, WESTERN UNION, ETC.


After-sales service

Nanjing EFG CO., LTD tracks the cargo of every shipment till the customer uses the cargo, and offers any help for the customer's demand at any time.


Technical support

If the customer meets any problem with technic, Nanjing EFG CO., LTD will supply relative knowledge to help the customer find the best solution, and can send a technician to the customer's factory for guidance if necessary.
