Fiberglass Mesh Reinforced Polyester Mat

Fiberglass mesh reinforced Polyester nonwovens are the combination of the flexibility of polyester with the stability of fiberglass's excellent runnability, especially at high temperatures and when used on high-speed bitumen lines. It also gives the bituminous membrane outstanding dimensional stability and resistance over time.

Send Inquiry

Features

Products Description

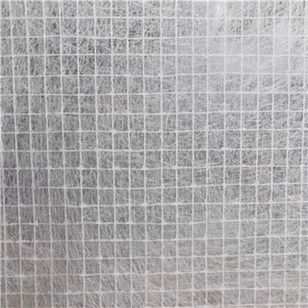

Fiberglass Mesh Reinforced Polyester Mat is a high-performance composite material that combines the flexibility of polyester nonwoven with the dimensional stability and high-temperature resistance of fiberglass mesh.

This reinforcement material ensures excellent runnability on high-speed bitumen production lines while significantly improving the tensile strength, tear resistance, and long-term durability of waterproofing membranes and paving systems.

The integration of fiberglass eliminates the thermal memory effect, meaning that once applied to roofs or pavement systems, the bituminous membrane remains dimensionally stable and resists shrinkage or deformation caused by temperature changes.

Key Features

High Heat Resistance – Performs well under elevated temperatures.
Anti-Corrosion – Resistant to chemical and environmental degradation.
Enhanced Mechanical Strength – Increases tensile and tear strength of bitumen membranes.
Extended Service Life – Prolongs the life of waterproofing membranes and paved surfaces.
Cost-Effective – Low-cost solution with high performance.
Application-Friendly – Easy to handle, cut, and install.

Applications

Pipeline Wrapping & Protection

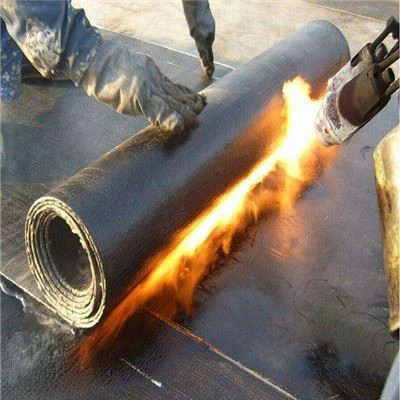

Substrate material for bituminous waterproofing membranes
Reinforcement material for sports flooring systems
Paving mat to enhance waterproofing, anti-crack, and structural stability for highways, airport runways, and other large-scale pavement projects
Geotextile reinforcement for infrastructure and civil engineering projects

Technical Data

Parameter	Unit	PF110-45P
Area Weight	g/m²	100
Polyester Mat Weight	g/m²	45
Tensile Strength (MD)	N/5cm	700
Tensile Strength (CD)	N/5cm	700
Mesh Opening	ends/cm	3 × 1.6
Roll Length	m/roll	1100
Roll Diameter	mm	760
Paper Core Diameter	mm	76 / 152
Roll Width	mm	1002
Elongation at Break	%	4
Loading (Rolls / 40'HC without pallet)	–	114
Loading Capacity	m² / 40'HC	125,400

Packaging & Loading

Roll Packaging: PE plastic film
Pallet Packaging: Stacking ≤ 2 layers; pallets are fumigation-free with certificate available

Delivery：

Products are loaded into containers at the factory and shipped via major international carriers such as MSK, MSC, CMA, COSCO, YANG MING, APL, etc., to customers' ports worldwide.
