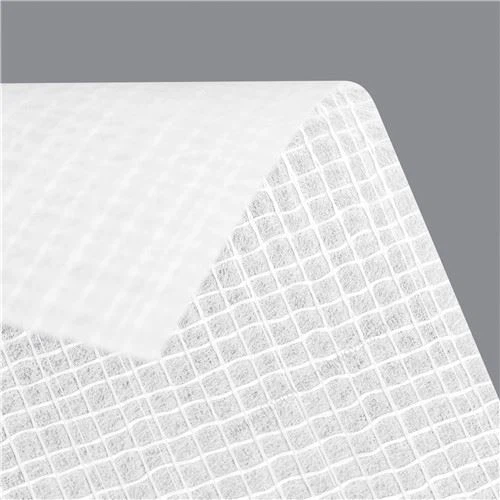

Reinforced Fiberglass Mat (Fiberglass mat + scrim)
Reinforced Fiberglass Mat is Fiberglass mat reinforced with fiberglass scrim. Fiberglass mat has good features on tensile strength and tear strength. The fiberglass scrim reinforces a very high tensile strength on both longitudinal direction and lateral direction. The tensile strength is adjustable by changing the mesh size of the yarns, so the reinforced fiberglass mat can be produced according to tensile strength requirement from customers.
Features
The reinforced fiberglass mat features high tensile strength, high tear strength, corrosion resistance, easy soakage of bitumen with low elongation.
Application

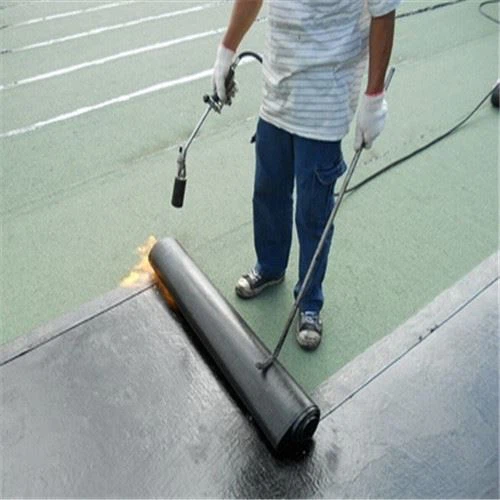

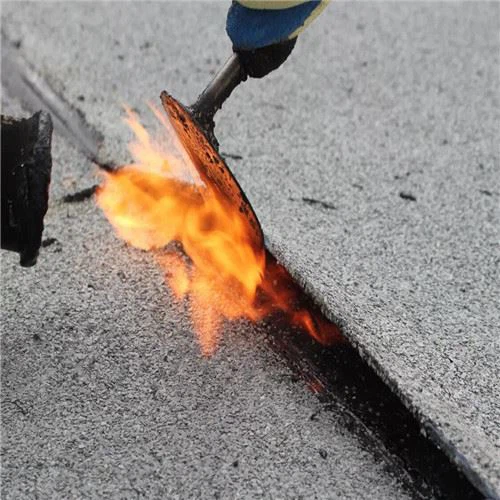

1. Excellent substrate material for APP or SBS modified bitumen membrane.
2. Ideal base material for pipe wrapping.
3. Express way and airport runway.
4. High strength professional sports floor.
Technical Data
<table width="100%" border="0" cellspacing="0" cellpadding="0" class="table"
Item | Specification | ||||||
Item No. | FM60/35F | FM95/35F | FM110/50F | FM120/60F | FM130/60F | FM135/50F | FMF140/800 |
type | Fiberglass mat + fiberglass scrim | Fiberglass mat + fiberglass scrim | Fiberglass mat + fiberglass scrim | Fiberglass mat + fiberglass scrim | Fiberglass mat + fiberglass scrim | Fiberglass mat + fiberglass scrim | Fiberglass mat + fiberglass scrim+fiberglass mat |
Area Weight (g/M2) | 60±5 | 95±5 | 110±10 | 120±10 | 130±10 | 135±10 | 140±10 |
Mat Weight (g/M2) | 35 | 35 | 50 | 60 | 60 | 50 | 40 |
Width (mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Mesh Open (ends/cm) | 2x1 | 3x1.6 | 3x1.6 | 3.0x1.6 | 2x1.6 | 3.0x1.6 | 3.0x1.6 |
MD & CD yarns (Tex) | 68x68 | 68x136 | 68x136 | 68x136 | 136x136 | 136x136 | 68x136 |
Roll Diameter （mm） | 1180 | 1180 | 1180 | 1180 | 1180 | 1180 | 1180 |
Core Diameter （mm） | 76, or 152 | 76, or 152 | 76, or 152 | 152 | 152 | 152 | 152 |
Moisture （%） | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Binder Content (%) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Tensile Strength MD （N/5cm） | ≥450 | ≥700 | ≥700 | 700 | 900 | 1200 | 800 |
Tensile Strength CD （N/5cm） | ≥250 | ≥700 | ≥700 | 700 | 700 | 700 | 800 |
