Reinforced Fiberglass Mat for Pipe Wrap

Reinforced Fiberglass Mat for Pipe Wrap

Reinforced Fiberglass Mat (Fiberglass mat + scrim) Reinforced Fiberglass Mat is a Fiberglass mat reinforced with fiberglass scrim, the fiberglass scrim gives very strong tensile strength in both longitudinal direction and lateral direction. The tensile strength is adjustable, so the reinforced...

Product Details

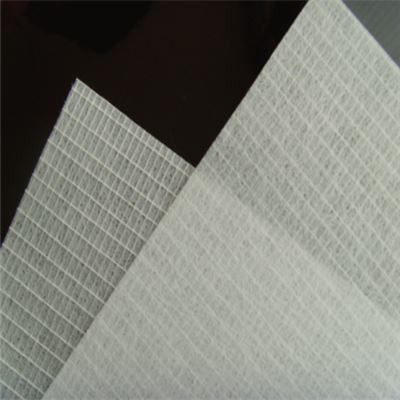

Reinforced Fiberglass Mat (Fiberglass mat + scrim)




Reinforced Fiberglass Mat is a Fiberglass mat reinforced with fiberglass scrim, the fiberglass scrim gives very strong tensile strength in both longitudinal direction and lateral direction. The tensile strength is adjustable, so the reinforced fiberglass mat can be produced according to the tensile strength requirement from customers.


Characteristics

The reinforced fiberglass mat has good features, such as high tensile strength, high tear strength, corrosion resistance, easy soakage of bitumen and low elongation.


Application

1. Ideal base material for pipe wrapping.

2. Excellent substrate material for APP or SBS modified bitumen membrane.

3. Waterproofing for express way and airport runway.

4. Reinforcement of high strength sports floor.

 - &62


Technical Data


Item

Specification






Item No.

FM60/35F

FM95/35F

FM100/60F

FM120/60F

FM130/60F

FM135/50F

type

Fiberglass mat + fiberglass scrim

Fiberglass mat + fiberglass scrim

Fiberglass mat + fiberglass scrim

Fiberglass mat + fiberglass scrim

Fiberglass mat + fiberglass scrim

Fiberglass mat + fiberglass scrim

Area Weight

(g/M2)

60±5

95±5

100±10

120±10

130±10

135±10

Mat Weight

(g/M2)

35

35

60

60

60

50

Width

(mm)

1000

1000

1000

1000

1000

1000

Mesh Open

(ends/cm)

2x1

3x1.6

3.0x1

3.0x1.6

2x1.6

3.0x1.6

MD & CD yarns

(Tex)

68x68

68x136

68x68

68x136

136x136

136x136

Roll Diameter

(mm)

1180

1180

1180

1180

1180

1180

Core Diameter

(mm)

76, or 152

76, or 152

152

152

152

152

Moisture

(%)

0.8

0.8

0.8

0.8

0.8

0.8

Binder Content

(%)

25

25

25

25

25

25

Tensile Strength MD

(N/5cm)

≥450

≥700

≥700

700

900

1200

Tensile Strength CD

(N/5cm)



≥250

≥700

≥250

700

700

700

Packing & Delivery

Wrapped with shrinkage flim, then packed on the pallet.

  1. Roll packaging: PE plastic film.

  2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.
    Pallet is free of fumigation, fumigation certificate is available.


Storage
Unless otherwise specified, Chopped Strand Mat should be stored in a dry, cool and rain-proof area. It is recommended that the room temperature and humidity should be always maintained at 15ºC~35ºC and 50%~75% respectively.


Technical support
If customer meets any problem about technic, Nanjing EFG CO., LTD will supply relative knowledge to help customer find the best solution, and can send technician to customer's factory for guiding if necessary.
