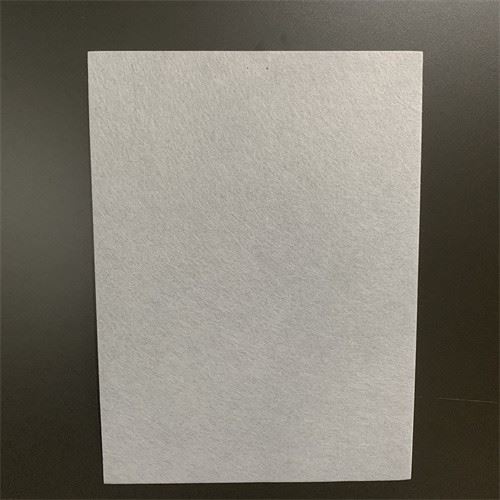

PCB(Printed Cricuit Board)Tissue

PCB(Printed Cricuit Board)Tissue

PCB(Printed Circuit Board)Tissue is specially used as the base material in the copper-clad laminate of type CEM-3. This type of tissue is characterized by its smooth visual quality, excellent electrical feature, and heat resistance. Being uniquely compatible with an epoxy resin matrix,...

Product Details

Product description

PCB(Printed Circuit Board)Tissue is specially used as the base material in the copper-clad laminate of type CEM-3. This type of tissue is characterized by its smooth visual quality, excellent electrical feature, and heat resistance. Being uniquely compatible with an epoxy resin matrix, this type of mat enables the CCL product to reach the specifications set by IPC-4130 and is comparable to that made of fiberglass woven roving. Applicable to industrial electronic devices, CCL with a fiberglass tissue base is well received by the market because of its processability by punching and drilling. The successful application by the CCL producers has proven that the PCB tissue developed by this company is comparable to similar products in the world market in terms of physical and chemical properties and is reliable in CCL production.


printed circuit board tissue20211129160950c101fc28e6644dfb9c2e20ce644a1f44


Characteristic

Smooth visual quality

Excellent electrical feature

Heat resistance

Compatible with the epoxy resin matrix


Technical data

Item

Unit

Standard

Area Weight

G/m2

75±5, 105±5

Width

MM

1265

Binder Content

%

11±2

Tensile Strength MD

N/50 mm

>225

Tensile Strength CD

N/50 mm

>150

Color

White

Remark: 1. The technical data above is for reference only.

    2. Any special size can also be supplied according to customers' requests.


Packing

Every roll in plastic film or several rolls in one big plastic bag.




Storage

This product should be stored in a dry, ventilated, and rainproof place, with temperatures from 5ºCto 35ºC and

humidity between 35% and 65%. It is recommended to be kept in the safe package when not used to avoid dampness.


Customization

The product in the above table is the standard type Nanjing EFG CO., LTD is delivering to customers.    If the customer wants it in specific unit weight, tensile strength, roll width, and roll length. Nanjing        EFG CO., LTD can produce fiberglass mats as per the customer’s requirement, and offer tailored service to customers from different countries.



Payment

LC, T/T, CAD, PAYPAL, WESTERN UNION, ETC.


Our Services

Nanjing EFG CO., LTD tracks the cargo of every shipment till the customer uses the fiberglass mat, and offers any help for the customer’s demand at any time. If the customer meets any problem with technic, Nanjing EFG CO., LTD will supply relative knowledge to help the customer find the best solution, and can send a technician to the customer’s factory for guidance if necessary.
