The HFCP Reinforced Composite Sheet

The HFCP Reinforced Composite Sheet

The HFCP Reinforced Composite Sheet uses PP fiber and glass fiber as the main raw materials. Firstly it is produced into the composite mat by wet layout process or dry process. Then in the next process, we press the composite mat with high pressure and high temperature, and the mat becomes sheets.

Product Details

Product description

The HFCP Reinforced Composite Sheet uses PP fiber and glass fiber as the main raw materials. Firstly it is produced into the composite mat by wet layout process or dry process. Then in the next process, we press the composite mat with high pressure and high temperature, and the mat becomes sheets. This composite sheet has the advantages of low density, flame retardancy, high/low - temperature resistance, flexible and beautiful design, waterproofing, easy coating, high strength, and low cost.

Compared to steel sheets or FRP boards, this composite board is characterized by lightweight, impact resistance,  vibration resistance, thermal insulation, size stability, easy forming, acoustic absorption, no smell, anti-mildew, good toughness, corrosion resistance, flexible and low price. The surface of the sheet can be selected according to the actual requirements of different surface coverings, such as rubber film, barrier film, decoration, hard polypropylene film, non-woven cloth, reinforced material, or no coverings.

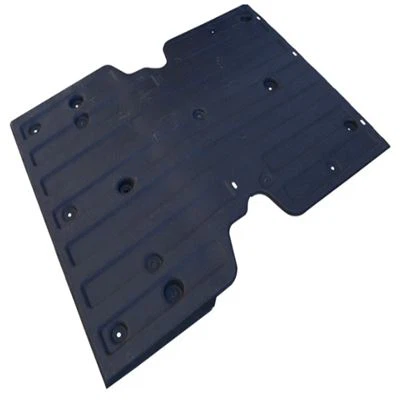

The HFCP Reinforced Composite Sheet is an ideal material in the field of automobile manufacture. Many parts of the cars can be produced by this composite sheet including the car roof, top and bottom decoration board of a、b、c column, cover plate, coat rack, outer wheel covers of four wheels, trunk cover, the bottom plate of the engine, backboards of the seat and so on.

1613699819(1)1613698298(1)


Technical data

HFCP materials specifications ( regular )

Area weight from 700-2000g/m2

Width: 2500mm

Length: as per request


   Weight     (g/m2)

Tensile   strength     (Mpa)

Winding       (Mpa)

Density

700

7.8

860

0.338

800

9

1215

0.378

900

9.5

1450

0.418

1000

15

1800

0.458

1200

18.5

2000

0.504

1400

27.5

2600

0.603

1600

40

3400

0.711

2000

47

4800

0.848

HFCP mechanical property (2.5 mm thick length of sheet molded at 23 degrees Celsius)


HFCP sheet

Thickness

Thickness

  Thickness   range

(before   compressing)

(after   compressing)

of mould   pressing

(g/m2)

(mm)

(mm)

(mm)

600

1.8-2.1

4.0-4.5

1.5-3.5

700

2.5-2.8

4.5-5.0

1.5-3.5

800

2.5-3.0

4.7-5.2

1.5-4.0

900

3.0-3.5

5.3-5.8

2.0-4.5

1000

3.2-4.0

6.0-6.5

2.0-5.0

1200

4.0-4.9

7.2-7.7

2.0-6.0

1400

5.0-6.2

8.5-9.0

2.0-7.0

1600

5.5-6.5

9.5-10.0

2.0-8.0

1800

6.0-7.0

10.5-11.0

2.0-9.0

2000

6.5-7.5

11.0-12.5

2.0-11.0

Remark: 1. The technical data above is for reference only

2. Any special size can also be supplied according to customers' request


Characteristic

1.      Lightweight

2.      Flame retardant

2.      High/low - temperature resistance

3.      Acoustic absorption

4.      Anti-mildew

16546700882391613698185(1)1613698209(1)_1

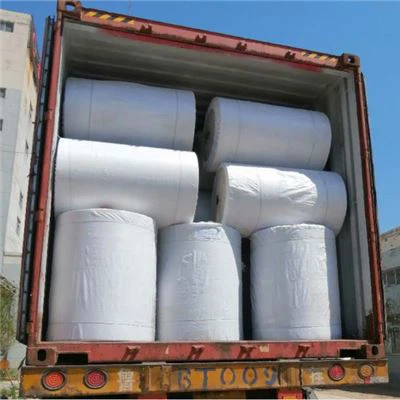

Packing & Loading

1. Roll packaging: PE plastic film.

2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.

    The pallet is free of fumigation, fumigation certificate is available.


Delivery

The product will be loaded into a container in the factory. Then be delivered to the seaport, and finally shipped to the Customers' port by MSK, MSC, CMA, COSCO, YANG MING, APL,  etc.



1612678122(1)_20180601173023 (2)



Storage

This product should be stored in a dry, ventilated and rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in a safe package when not used to avoid dampness.



Customization

The product in the above table is the standard type Nanjing EFG CO., LTD is delivering to customers. If the customer wants it in specific unit weight, tensile strength, roll width, and roll length, Nanjing EFG CO., LTD can produce fiberglass mat as per the customer's requirement, and offer tailored service to customers from different countries.


Payment

 LC, T/T, CAD, PAYPAL, WESTERN UNION, ETC.


Our Services

Nanjing EFG CO., LTD tracks the cargo of every shipment till the customer uses the fiberglass mat, and offers any help for the customer’s demand at any time.

If the customer meets any problem with technic, Nanjing EFG CO., LTD will supply relative knowledge to help the customer find the best solution, and can send a technician to the customer's factory for guidance if necessary.

­­­­­­­­­­­­­­­­­­­­­
