Ceramic Fiber Insulation Paper

Ceramic Fiber Insulation Paper

Ceramic fiber paper is a lightweight refractory material processed from a blend of high purity alumina-silica fibers into a highly flexible, uniform sheet. It is recommended for classification temperatures up to 1260C (2300"F). Ceramic fiber paper, has low shrinkage, good handling strength, and low thermal conductivity.

Product Details

Product description

Ceramic fiber paper is a lightweight refractory material processed from a blend of high purity alumina-silica fibers into a highly flexible, uniform sheet. It is recommended for classification temperatures up to 1260C (2300"F). Ceramic fiber paper, has low shrinkage, good handling strength, and low thermal conductivity. It contains a small amount of organic binder for the processing which makes it flexible and reduces ff-gassing and odor during use.

Our product has a highly uniform structure due to its controlled basis weight and thickness, assuring homogeneous thermal conductivity and a clean, smooth surface ideal for gasket or sealing. Ceramic fiber paper is completely free of asbestos and is designed toe an economic replacement for asbestos paper in most applications. Ceramic fiber paper is easy to handle and is readily cut with a knife, shears, or standard steel rule dies. Its flexibility allows it to be wrapped or rolled to fit the most complex configuration.


7E7A3308_7E7A32947E7A3103



Technical data


Specification

TXZ-1260

TXZ-1350

TXZ-1400

Density (kg/m³)

160±20

160±20

170±20

Classification temperature℃

1260

1350

1430

Long-time using temperature℃

1000

1200

1300

Organic matter content%

≤8%

≤8%

≤8%

AL2O3%

≥45

≥52

≥36

AL2O3+SIO2%

≥98

≥99

≥84

Linear Shrinkage (1000℃--24h)

≤3.5%

≤3.5%

≤3.5%

Thermal Conductivity         400℃

≤0.1

≤0.1

≤0.16

Thermal Conductivity         800℃

≤0.19

≤0.19

≤0.22

Thermal Conductivity        1000℃

≤0.36

≤0.36


 Other dimensions are available for special orders.

 All data represent typical results of standard tests conducted under controlled conditions. As such, the information is intended only as a general guide for specifications and design estimates.


Typical Applications

Asbestos paper replacement

Investment cast mold wrap insulation

One-time consumable insulating applications

Back-up lining for metal troughs

Hot top lining

Applications where low binder content is required

Thermal and electrical insulation

Upgrade for fiberglass paper and blanket product

165569433232816556943605681655694380306


Features

Easy to cut, wrap or form

Temperature stability

Low thermal conductivity

Low heat storage

Resilient

Lightweight

Thermal shock resistant

High-fired tensile strength

Good flame resistance

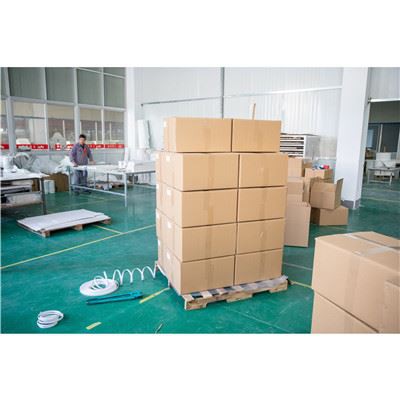

Packing

1. Roll packaging: PE plastic film
2. Pallet packaging: Pallets should NOT be stacked in more than 2 layers.
A pallet is free of fumigation, fumigation certificate is available.

7E7A3163_17. 7E7A3156

Delivery

The product will be loaded into a container in the factory. Then be delivered to the seaport, and finally shipped to the Customers' port by MSK, MSC, CMA, COSCO, YANG MING, APL,  etc.



Storage

This product should be stored in a dry, ventilated, rainproof place, with temperatures from 5℃to 35℃ and humidity between 35% and 65%. It is recommended to be kept in a safe package when not used to avoid dampness.



Customization

The product in the above table is the standard type Nanjing EFG CO., LTD is delivering to customers. If the customer wants it in specific unit weight, tensile strength, roll width, and roll length, Nanjing EFG CO., LTD can produce fiberglass mat as per the customer’s requirement, and offer tailored service to customers from different countries.


Payment

LC, T/T, CAD, PAYPAL, WESTERN UNION, ETC.


Our Services

Nanjing EFG CO., LTD tracks the cargo of every shipment till the customer uses the fiberglass mat, and offers any help for the customer’s demand at any time.

If the customer meets any problem with technic, Nanjing EFG CO., LTD will supply relative knowledge to help the customer find the best solution, and can send a technician to the customer's factory for guidance if necessary.

Company Profile

Established in 2003, NANJING EFG CO., LTD has been professional in glass fiber and polyester fiber nonwoven mat, created her vision that " Create a well-known international brand in the field of non-woven fiberglass material ", the products fiberglass mat, polyester mat, coated mat, reinforced mat are delivered to Europe, Middle East, North Africa, Asia, USA, Latin America, customer use NJEFG®, products for waterproof, filter, wall decoration, gypsum board, FRP surface, etc., quality and service are satisfied by customer.
With professional engineers and advanced production lines, NJEFG®, always focuses on offering customization to customers for special demands and developing new products for the market.
Every employee in NJEFG®, has interjected faith into the daily work and life. When you cooperate with NJEFG®, you will find that you are working with a professional team with active and high efficient service, stable quality, and a memorable reputation.

NJEFG® products cover the market of the Middle East, North Africa, southeast Europe, and North Europe. To have good service to the customers NJEFG runs a series of branch companies and joint ventures in Hong Kong, Algeria, and Iran.

2 Enviromental management system 2 Quality management system




FAQ

Q1.What's the MOQ?
A: Usually 10000SQM for mat or 1 Ton for glass fiber.

Q2.How can I get a sample?
A: Normally small samples can be sent free of charge and customers just need to bear the shipping charge, or you can provide your DHL, FEDEX, EMS, and UPS courier account number to us. For bigger sizes, it depends.

Q3.How do you do quality control?
A: We have the most professional tech team and experienced workers, from material choosing, and production process to final packing, all are under strict control to make sure you can sure you can get the qualified fiber products.

Q4.Can your company customize products?
A: Yes, We usually discuss with customers and help them find solutions.

Q5. How long does the sample take you to check quality?
A: Usually a sample will be prepared within one week after the specification is agreed upon.

Q6.What about your delivery time? Can we receive our goods on time?
A: Usually around 2-3 weeks after the order is confirmed. The exact delivery time depends on order quantity and Off-season/ busy season.
