Lightweight Fiberglass Laid Scrim

Lightweight Fiberglass Laid Scrim

This laid scrim is a kind of economic reinforcing non-woven fabric made from continuous filament yarn(fiberglass, or polyester, etc.) in square/diamond shape of an open mesh instruction with an ultra-light mass unit weight, which generally applies to increase tear strength, dimensional stability, facilitate handling or act as a carrier of adhesive to be used in secondary bonding.

Product Details

Product description

This laid scrim is a kind of economic reinforcing non-woven fabric made from continuous filament yarn(fiberglass, or polyester, etc.) in square/diamond shape of an open mesh instruction with an ultra-light mass unit weight, which generally applies to increase tear strength, dimensional stability, facilitate handling or act as a carrier of adhesive to be used in secondary bonding. It is typically applied when woven fabrics are too heavy and knitted products are too pliable for the application.


The scrim producing process by chemically bonding non-woven yarns, also are able to enhance the scrim with a unique glass/polyester veil (Laid scrims laminating with veil ), that allows for various customized demands.

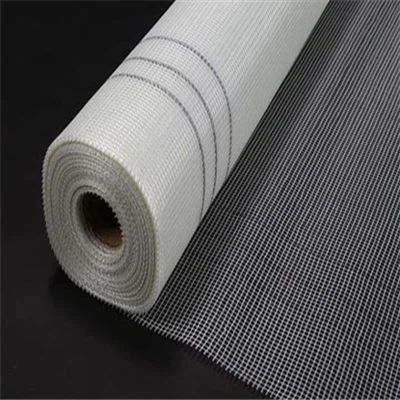

lightweight fiberglass scrim


Characteristic

• Dimensional stability                        • Tear resistance

• Tensile strength                                 • Water resistance

• Fire resistance                                    • Antibacterial

Typically Laid scrims are used in roofing, flooring, tapes, automotive, composites, hygiene, medical, packaging, lightweight constructions, and many other industries.


Technical data

Items

Scrim Specifications

Roll Width

Max 3,100mm or cut as customized

Roll Length

Up to 10,000 Meters

Filament yarns

Fiberglass, Polyester filament, etc.

Pattern construction

Bid-axial, Tri-axial

Mesh size

2.5*2.5mm to 25x25mm

Tensile Strength

From 20N/5cm to 880N/5cm

Bonding

Environmental PVOH, PVA, PVC, acrylic emulsion, etc.

Materials for combination

Nonwoven, glass tissue, plastic films, Aluminum foil, etc.

Remark:

1. Other specifications can be customized according to the customer's demand.

2. The technical data above is for reference only.

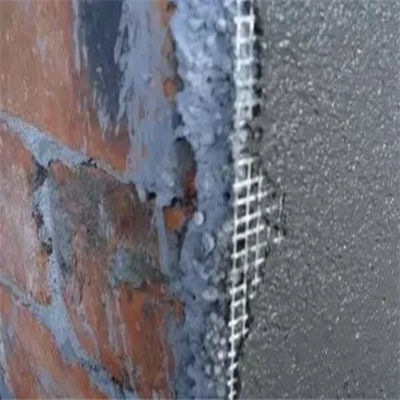

Applicationapplication2

Packing

Standard export packing.


Storage

This product should be stored in a dry, ventilated, and rainproof place, with temperatures from 5ºCto 35ºC and humidity between 35% and 65%. It is recommended to be kept in a safe package when not used to avoid dampness.
